p2-33 Electric Circuits and Machines_1996_Eugene C. Lister and Robert J. Rusch

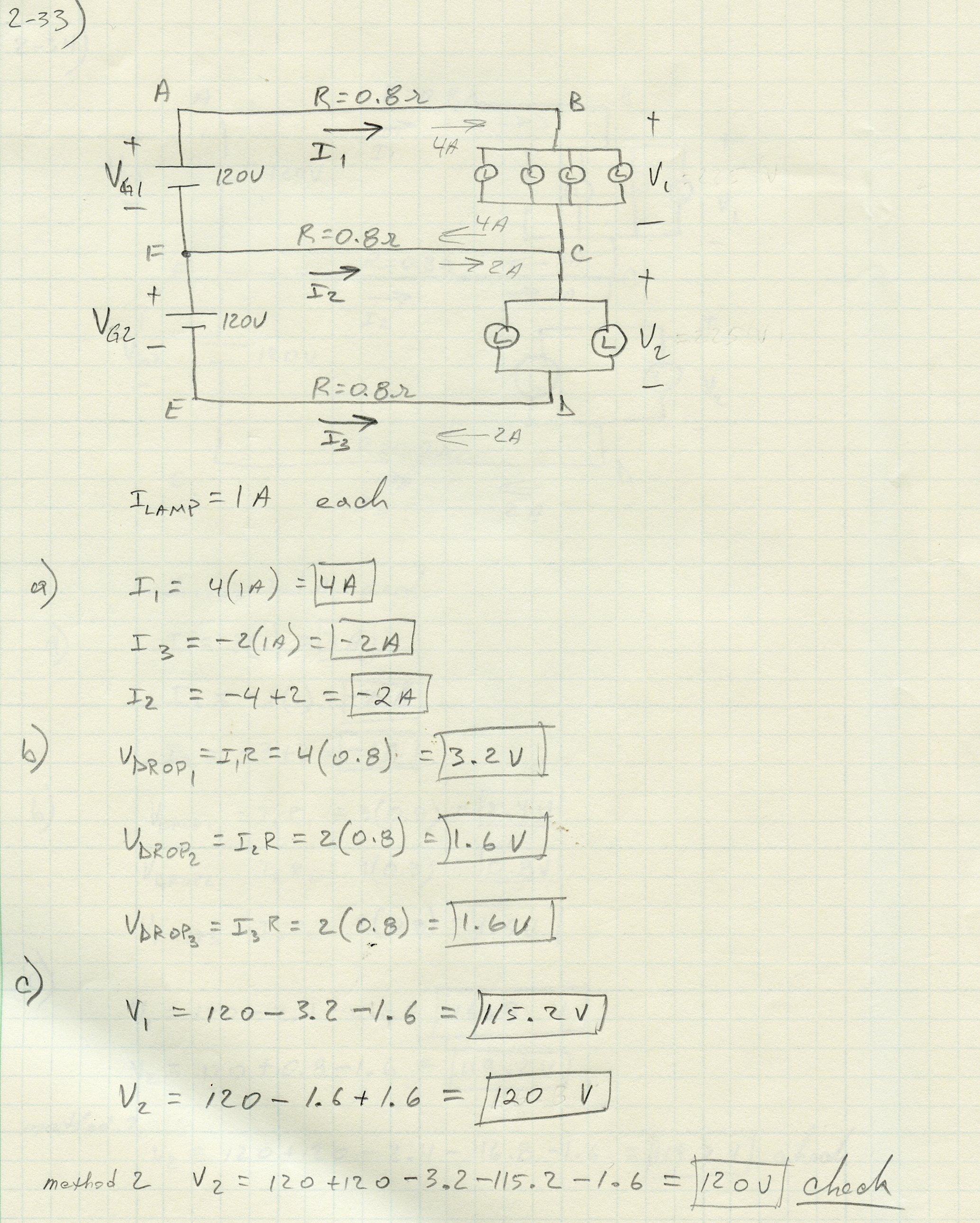

If each lamp in Fig. 2-20 requires a current of 1 A, find (a) the
current and its direction in each of the three lines, (b) the IR drop
in each line, and (c) the voltages V1 and V2.
